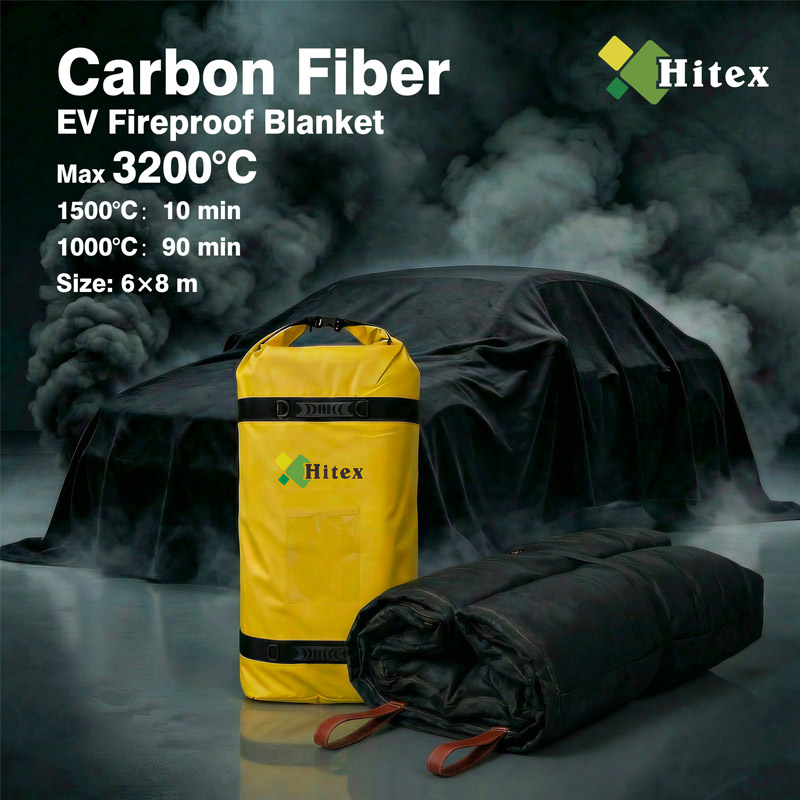

The BlackFire Carbon Fiber Fire Blanket is an advanced safety solution engineered for the unique challenges of new energy vehicle (NEV) fires. It is constructed from a heavy-duty, woven fabric made of 20S/4 carbon fiber yarn. The blanket offers superior thermal protection, mechanical performance, and flame-suppressing capabilities, making it an essential tool for emergency response scenarios involving lithium-ion batteries and high-temperature fires. Its high Limiting Oxygen Index (LOI) indicates exceptional flame retardancy.
FEATURE
*High-Temperature Resistance:
Withstands temperatures from 800°C to 1800°C instantaneously, with a maximum instantaneous resistance of up to 3200°C.
*Excellent Flame Retardancy:
Features zero after-flame and zero smolder time, with no melting or dripping phenomena.
*High Strength & Durability:
Demonstrates high breaking and tearing strength, capable of withstanding significant static loads and dynamic impact.
*Effective Fire Suppression:
Specifically designed to effectively extinguish fires in new energy electric vehicles, preventing re-ignition.
*Safety Compliant:
Free from harmful substances including formaldehyde, carcinogenic aromatic amines, and asbestos.
APPLICATION
Kitchen & Household Safety:
Stovetop Grease Fires: Quickly smothers oil or grease fires by cutting off oxygen. Unlike water, it won't cause splashing or flare-ups.
Industrial & High-Heat Environments:
Welding & Grinding Shield: Acts as a heavy-duty Welding Blanket to protect floors, equipment, and personnel from molten metal sparks and slag.
Electric Vehicle (EV) & Battery Safety:
Lithium Battery Mitigation: Effective for initial containment of small battery fires or overheating components in labs and manufacturing facilities.
Marine & Automotive Sector:
Engine Room Protection: Ideal for yachts and performance boats where space is tight and fire-fighting tools must be non-corrosive and easy to deploy.
Laboratory & High-Tech Facilities:
Cleanroom Compatible: Because carbon fiber (especially pre-oxidized fiber) does not shed irritating glass dust, it is preferred for cleanrooms, data centers, and precision instrument labs.
TECHNICAL SPECIFICATIONS
Property | Value |
Material | Carbon Fiber Fabric |
Size | 6 m × 8 m |
Weight | 24 ± 1 kg |
Fabric Type | Woven Fabric |
Fabric Weight | 480 g/m² |
Thickness | 0.96 - 0.99 mm |
Thermal Protective Performance (TPP) - Before Wash | 17.4 cal/cm² |
After-flame Time | 0s |
Smolder Time | 0s |
Melting & Dripping | No melting, no dripping |
Weight | 24 ± 1 kg |
Limiting Oxygen Index (LOI) | > 42 |
Continuous Use Temperature (Time to Burn- through) | 1000°C: ~90 minutes,1500°C: ~10 minutes,3200°C: ~53 seconds |
Instantaneous Withstand Temperature | 800 - 1800°C (Max. 3200°C) |
Breaking Strength (Dry) - Warp | 824.9 N |
Breaking Strength (Dry) - Weft | 664.9 N |
Breaking Elongation (Dry) - Warp | 0.31 |
Breaking Elongation (Dry) - Weft | 0.14 |
Tearing Strength - Warp | 110.13 N |
Tearing Strength - Weft | 81.9 N |
Load & Impact Test | Passes static load and dynamic impact test. No tearing when diagonally suspended with (100±2.5)kg weight for 60 seconds. |
Air Permeability | 70 mm/s |
Efficacy on NEV Fires | Capable of extinguishing flames. No reignition after blanket removal. No flame penetration through the blanket during testing. |
Note: Specifications are subject to change based on technological advancements. Please confirm with the latest data sheet provided by Carbon Fiber Fire Blanket.
