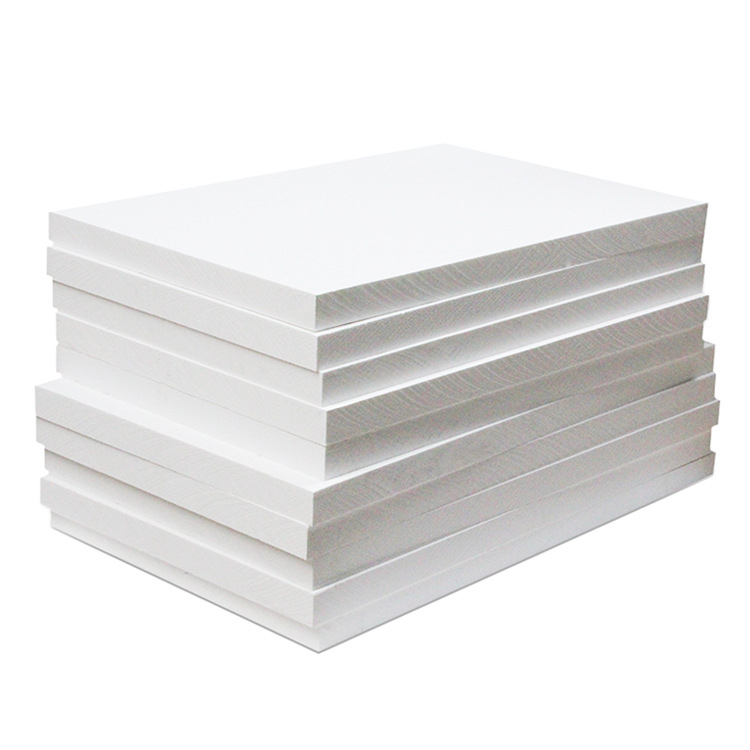

Polycrystalline Mullite Fiber Board

Polycrystalline Alumina Fiber Board are fabricated by suck-press combined method using polycrystalline alumina fiber as main starting materials, adding packing materials and binders. Compared with calcined fiber products, the products are featured with better machinability, lower thermal conductivity, and volume weight.

Features:

l  High strength, low thermal conductivity, excellent thermal shock resistance.

l  High-temperature resistance, it can be directly used as a hot-face backfire material.

l  Low linear shrinkage, stable high-temperature performance.

l  High-temperature corrosion resistance, no wave absorption.

l  Easy to cut and install.

Application:

l  High temperature experimental electric furnace.

l  Sintering equipment for lithium battery materials.

l  Sintering equipment for high-temperature ceramics.

l  Thermal insulation in the steel industry.

l  The insulation layer of high-temperature microwave device.

l  Thermal insulation materials for heating devices.

l  Backing insulation of various high-temperature furnaces

Technical Data:

Item

HT-1600B

HT-1800B

Color

White

White

Classification Temperature(°C)

1600

1800

Molten Point(°C)

1870

1870

Maximum Service Temperature(°C)

1500

1650

Density(kg/m3)

300-600

500-700

Tensile Strength(Mpa)

0.50

0.50

Reheating Linear Change

1500°CX24h≤1.0

1600°CX24h≤0.8

Chemical Composition



AL2O3

72%

83%

SiO2+Al2O3

99%

99%

Others

≤1%

≤1%

Thermal Conductivity(W/m.k) Average



800

0.15

0.18

1000

0.20

0.22

1200

0.32

0.35

Specification:

Name

Density

(kg/m3)

Length

(mm)

Width

(mm)

Thickness

(mm)

Polycrystalline Mullite Fiber Board

300-600

900/1000/1200

500/600/1000

6-100

500-700

900/1000/1200

500/600/1000

6-100

*Specific products could be made according to customers’requirements
