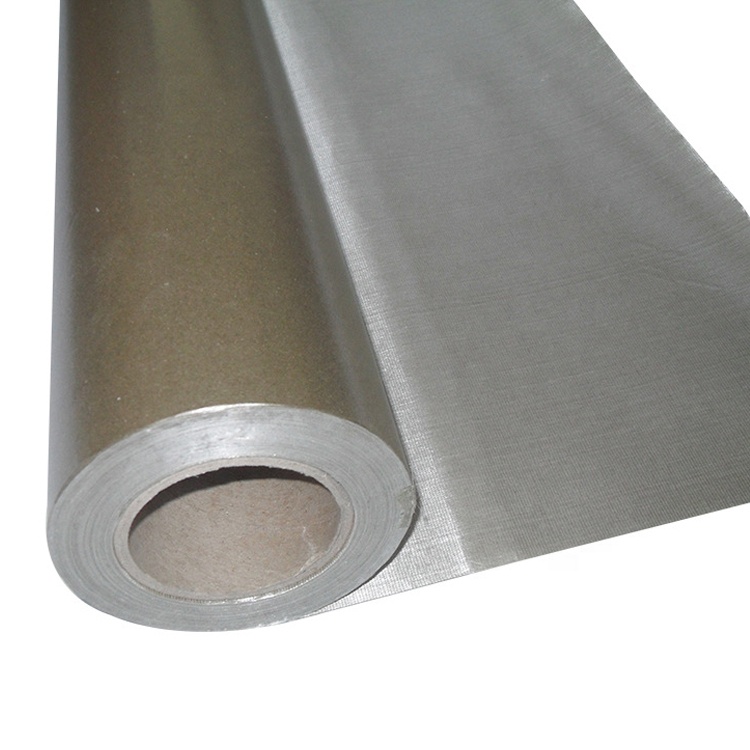

Mica Roll is especially pressed mica product, which is made of Phlogopite mica paper, glass cloth, harmless ceramic fiber, and silicon resin.
Structure:
l Phlogopite mica paper+glass fiber cloth+phlogopite mica, which is easy to cut to service different sizes of furnances.
l Glass fiber cloth+ phlogopite mica paper+ fiber cloth
l Glass fiber cloth+ phlogopite mica paper
l Glass fiber cloth+ phlogopite mica paper+ceranic fiber paper
Phlogopite mica roll is a specially pressed mica product which is made of phlogopite mica paper and silicon resin. The thickness ranges from 0.2mm to 0.8mm, breakdown voltage is above 15KV, tensile strength is above N/15mm and temperature resistance is above 800℃.
Application:
l Slip-plane: mica with strengthening material, pliable and tough to process to a different shape
l Safety-Layer: Fire-resistant and protect coil against the refractory material
l Separating-layer: Barrier and protector
l Isolation-layer: Electrical and thermal protection
l Fastening gasket and washer: Tough and special contraction design for industrial use
l Combine with Casi Paper, ceramic mat: For industrial furnace and customized product
Specification:
